Gearbox test bench

GEARBOX TEST BENCH

INDEPENDENT AND ACCORDING TO YOUR SPECIFIC REQUIREMENTS

High-quality gearbox tests

on our test bench

High-quality gearbox tests on our test bench

Extensive tests and inspections are usually carried out before new and overhauled gearboxes or prototype gearboxes are installed in wind turbines, industrial plants or ships. This confirms and documents the required performance of the gearbox.

At the same time, high transport and assembly costs are avoided from the outset, which would be incurred unnecessarily in the event of a defective gearbox. With our own gearbox test stand, we offer you tailor-made test and inspection services according to your requirements. We can test almost all sizes on our test field. During the test run or test run, we monitor all relevant functional units and drive components. We measure and record the previously determined parameters. This is how we ensure that your gearbox meets all technical requirements when it leaves our factory.


As an independent partner, we provide you with trustworthy and competent support for your project – please do not hesitate to contact us.

Gearboxes and drive components of almost all sizes and manufacturers can be tested on the MULTITEST gearbox test bench. In our factory we have crane tracks with capacities of 60 and 20 tons respectively. Higher weights can also be realized if required.

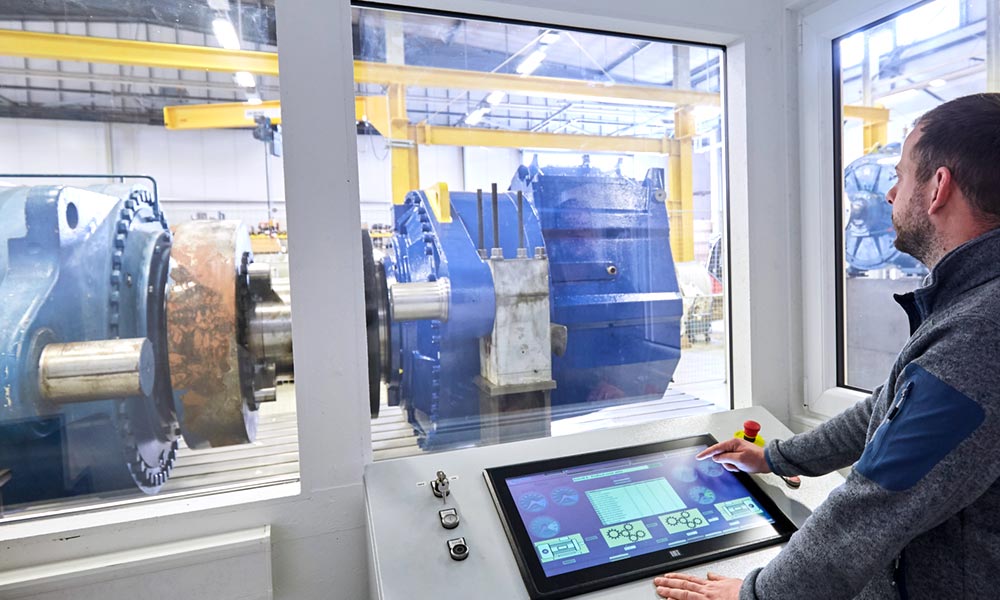

Control desk in the specially equipped control room

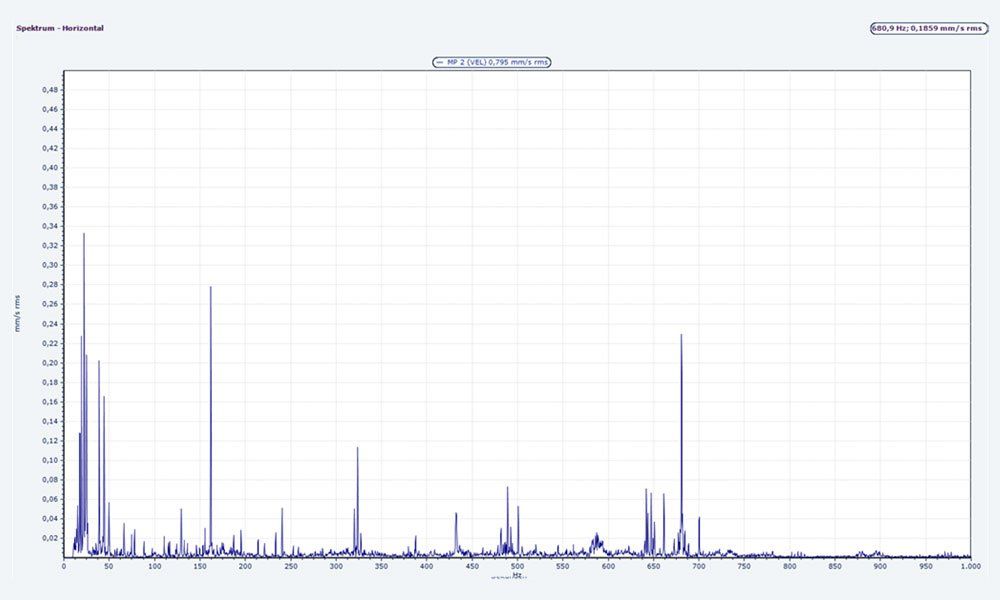

Example: measurement of vibration velocity

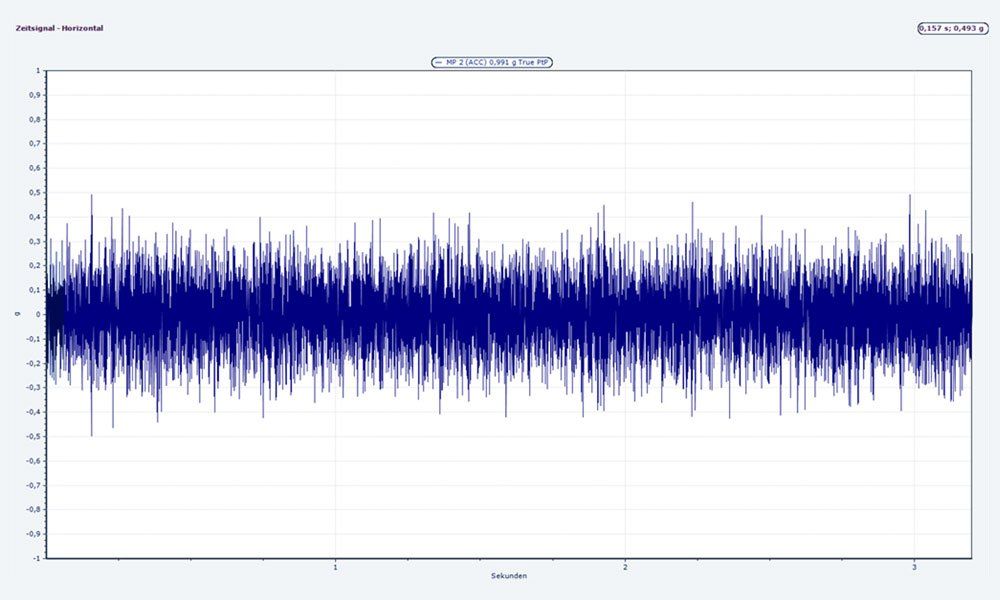

Example: measurement of vibration acceleration

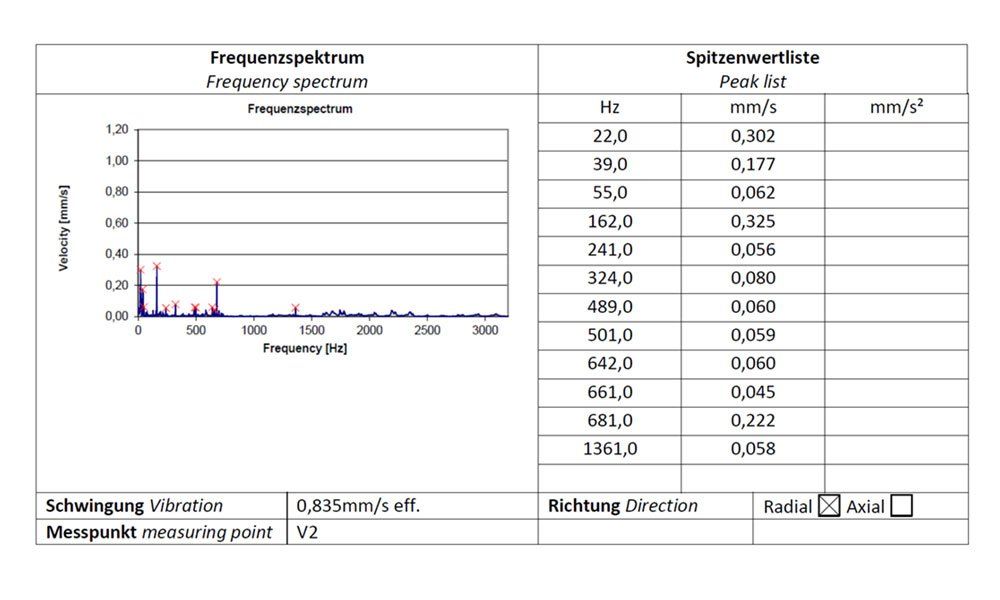

Example: excerpt of the vibration measurement log

MULTITEST has a good location at the Mendig site, on the former military airfield. With very good transport connections via the A61 and A48 and modern technical equipment within our factory, we offer you economically interesting options for testing your wind turbine gearbox, industrial gearbox or marine gearbox.

Modern testing technology and measuring methods

Gearboxes of almost all sizes and manufacturers can be tested on our test field:

  • Transmissions from the fields of wind power, industry, shipping ...
  • rotor shafts, pump couplings, cardan shafts ...


We can carry out and document the following tests and measurements on our gearbox test bench during the test run of the transmission:

  • General function test
  • Measurement of vibration with vibration speed and vibration acceleration
  • Temperature measurement
  • Sound and noise measurement
  • Measurement of oil pressure and oil cleanliness
  • Measurement of volume flow
  • Contact pattern check
  • Tightness
  • Video endoscopy
  • Alignments
  • Thermography


Based on the test and measurement results, we can provide a well-founded description of the condition of your gearbox. Possible weak points or errors are detected before high subsequent costs arise in the course of the installation measures at the later place of use.

Independent testing of gearboxes from all manufacturers

At our factory in Mendig, we are well equipped to test gearboxes and drive components of almost all sizes. Examples of manufacturer brands that we have successfully tested (alphabetical order):

  • Bosch
  • Rexroth
  • Brook Hansen
  • Eickhoff
  • Flender
  • Jahnel-Kestermann (JaKe)
  • Lohmann + Stolterfoth
  • Metso
  • Moventas
  • Renk
  • Valmet
  • ZF
  • …


Let our gearbox experts advise you. We would be happy to discuss your requirements and explore together what economic opportunities and benefits we can offer you.
